FKDC 2025 · SEASON 9 · KARI MOTOR SPEEDWAY ZERO FUEL. ALL CURRENT.

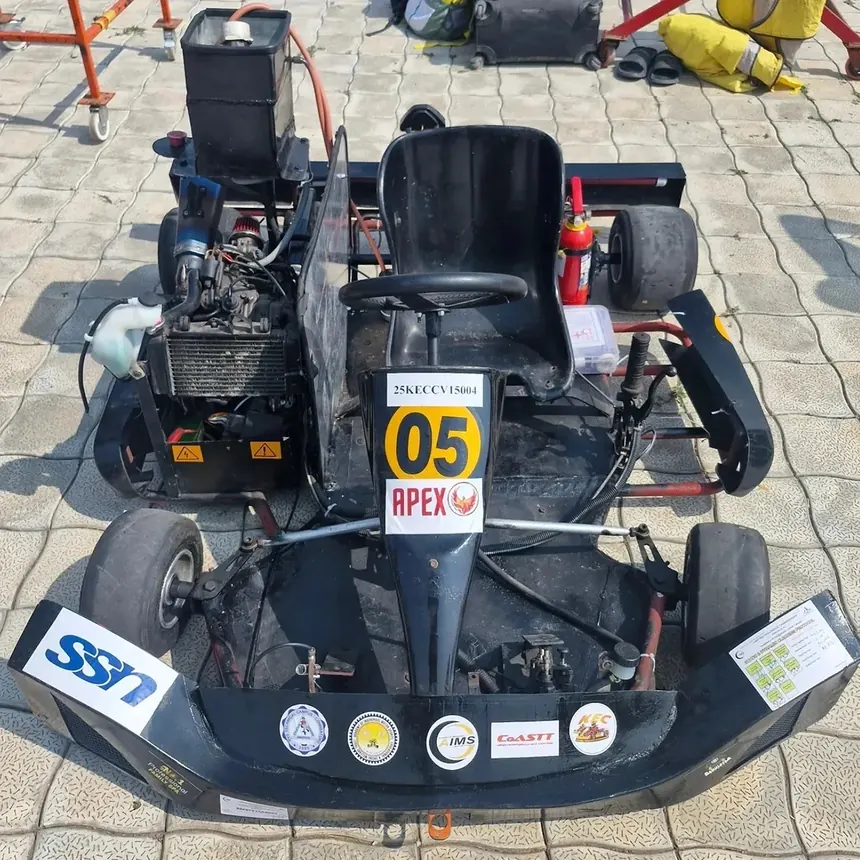

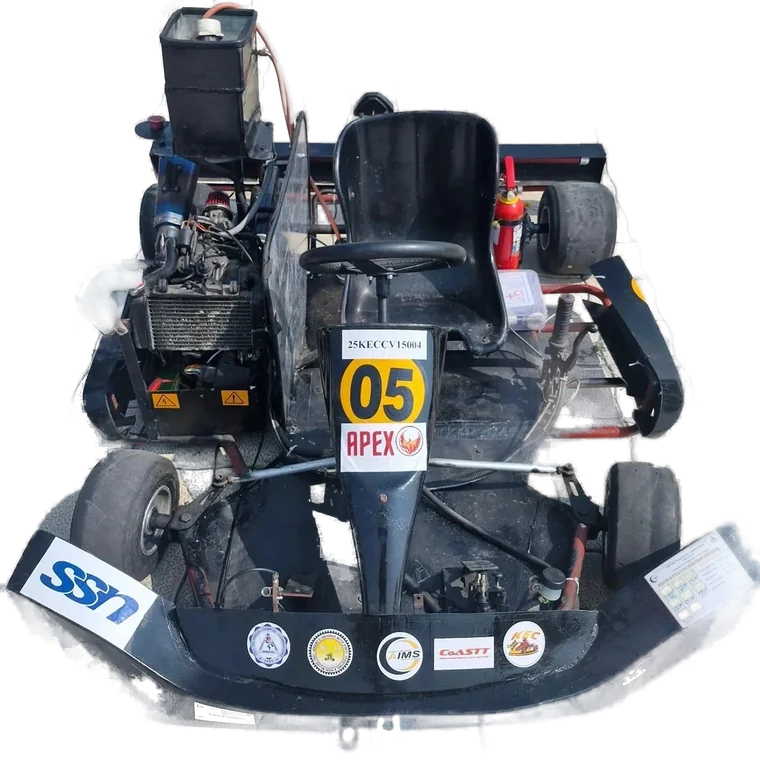

The Apex Racing electric kart photographed head on, number 05 on its nose plate and an SSN sticker on the front bumper.

ENGINEERED BYSTUDENTS.

SSN College of Engineering’s electric karting team. We design the kart, weld the frame, wire the pack and drive it. In Chennai, on a student budget.

BOX BOX: PARTNER WITH US FUND THE BUILD · RAZORPAY ENTER GARAGE

No company needed. Any amount, one tap.

FKDC 2025 · FIRST EV SEASON

P1Acceleration

P2Skid pad

POWERTRAIN · FULLY ELECTRIC

6kWPMSM

Pack60 V / 120 Ah

Peak torque79.22 Nm

THE KART

Frame 4130 CHROMOLY

Stops in 3 m TESTED

Turns in 3 m RADIUS

ON THE SHELFCONFIRM

Innovation Award

Go Green Award

COMBUSTION ERA

WHERE THIS GOESCONFIRM

FKDC

SUPRA

FORMULA BHARAT

YOU ARE HERE

02 · CAREER MODE

FROM PETROL
TO POWER.

We started in combustion. We switched to electric in 2025 and took P1 in acceleration in our first EV season.

The IKR team photo with the kart, number 16, outside the college blocks.

SAVE 012023

IKRCONFIRM

COMBUSTION

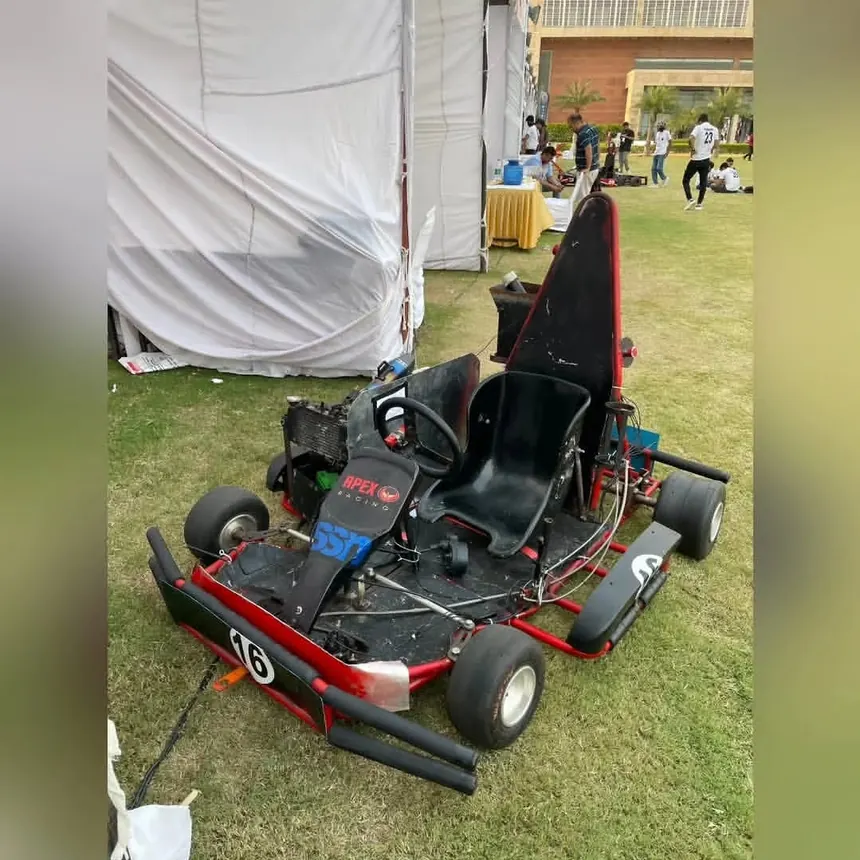

An early outing in the combustion category. The kart ran number 16 and most of the frame was cut, welded and fettled on campus.

#16Kart

ICClass

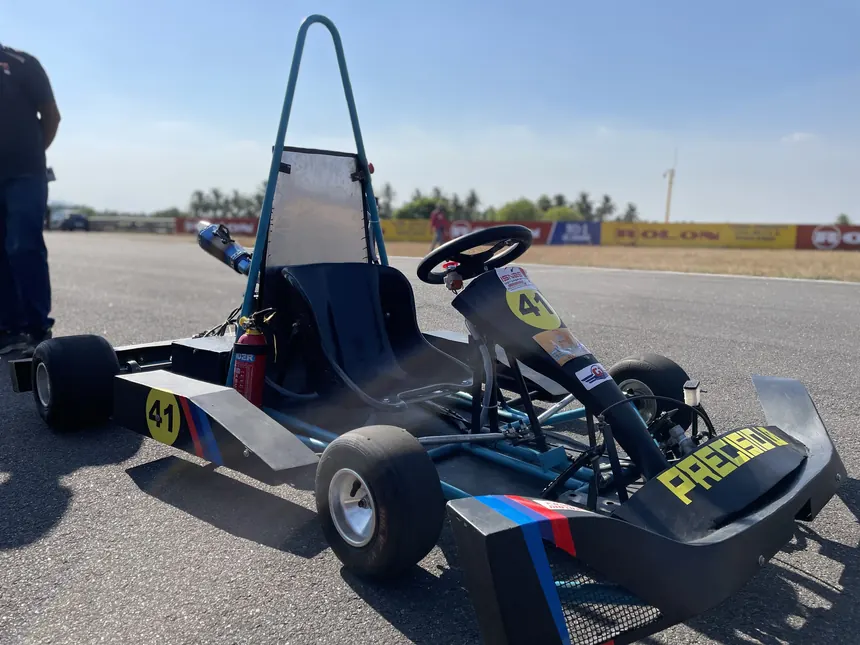

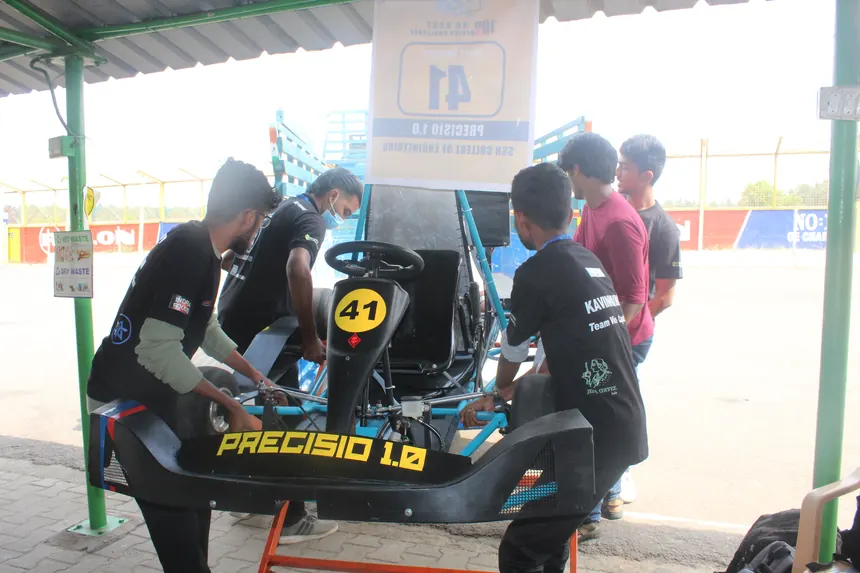

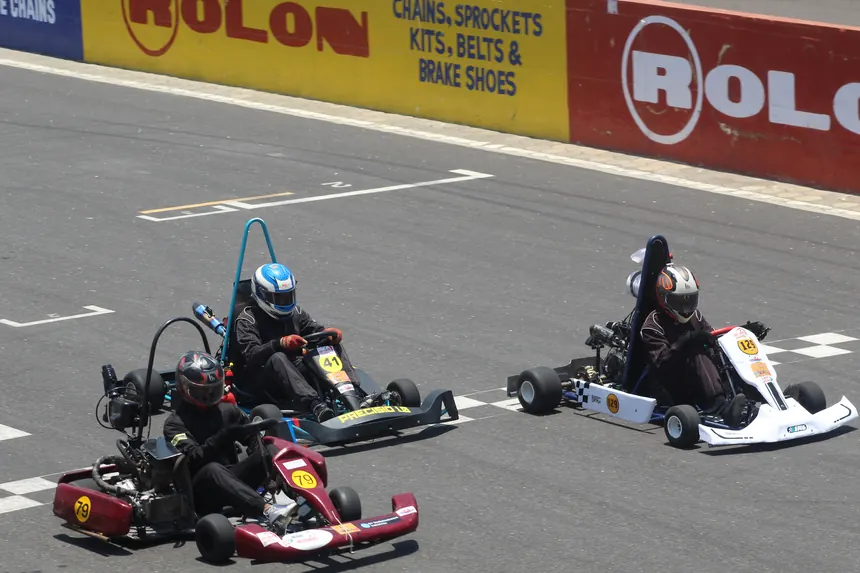

The Precisio combustion kart, number 41, parked on the circuit apron.

SAVE 02IC ERA

PRECISIOCONFIRM

COMBUSTION

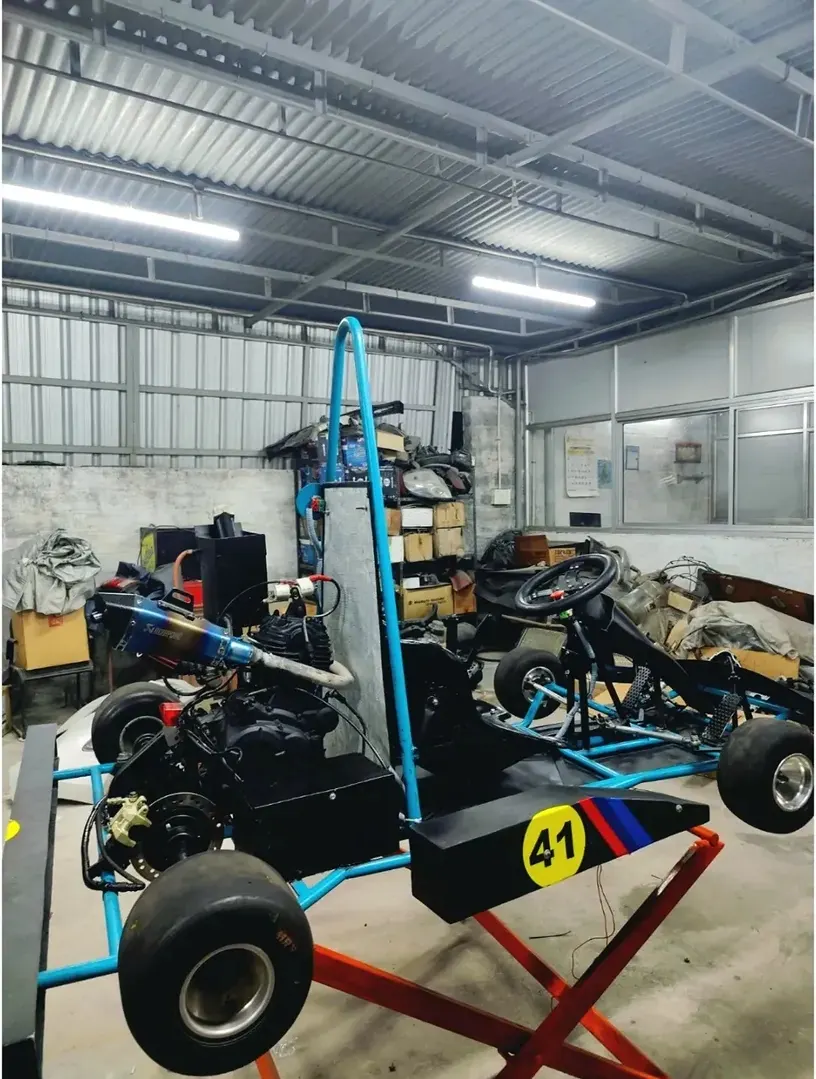

Before the rename we raced as Precisio. The kart carried number 41 and the name across its nose. That car won us an Innovation Award and a Go Green Award in the IC category.

#41Kart

2Awards

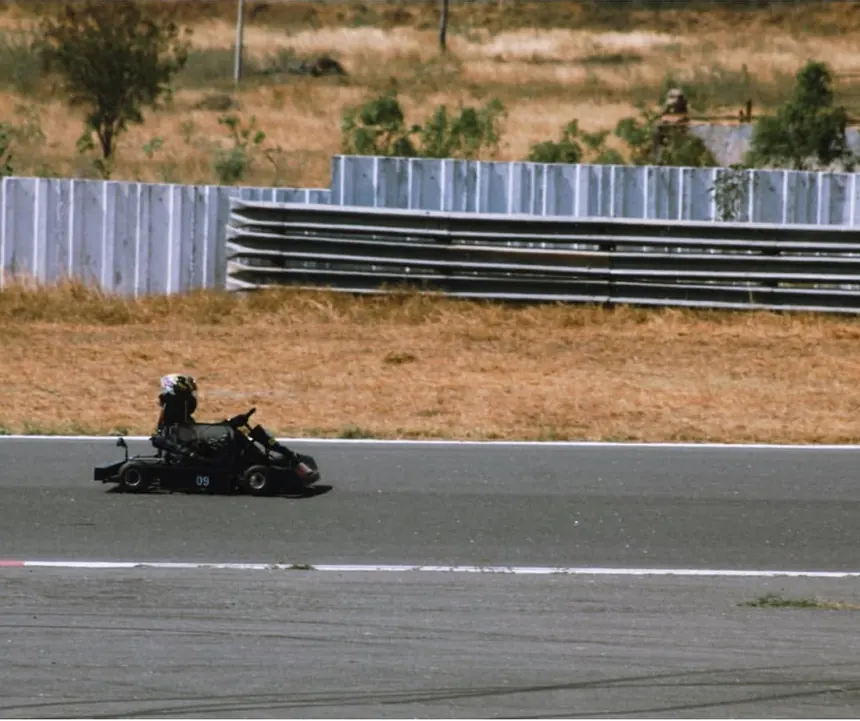

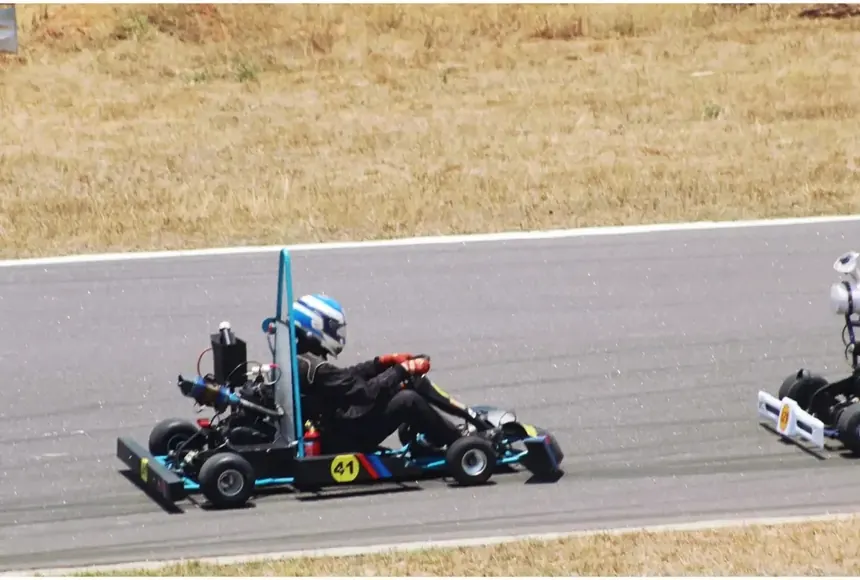

The kart on track at GKDC with the number board on its side pod.

SAVE 032024

GKDCCONFIRM

COMBUSTION

Another national karting event, still on petrol. It is the last season we ran a combustion kart, and the one that convinced us to change everything.

ICClass

Several hands at once fitting hardware into the rear frame.

SAVE 042025

GOING ELECTRIC

THE REBUILD

New name, new class, new everything. We moved the frame to AISI 4130 chromoly, designed a 6 kW electric drivetrain around a 60 V pack, and built our own telemetry to watch it work.

4130Frame

6 kWMotor

SAVE 05OCT 2025

FKDC 2025

SEASON 9 · KARI MOTOR SPEEDWAY

Our first year racing electric. We took P1 in acceleration and P2 in the skid pad. Endurance is where it came apart, and we have been rebuilding around that ever since.

P1Accel

P2Skid pad

Work continuing on the kart under the shed roof late in the evening.

SAVE 062026

THIS SEASONCONFIRM

IN PROGRESS

The 2026 build is underway. Four departments, one kart, and a workshop we are trying to get off the ground.

LIVEStatus

LOCKEDNEXT

SUPRA SAEINDIACONFIRM

FORMULA STUDENT

A full Formula Student car. A real step up in engineering, budget and ambition.

Unlocks with the right partners.

LOCKEDAFTER

FORMULA BHARATCONFIRM

EV CLASS

India’s Formula Student event, with an electric class we are built for.

Unlocks with the right partners.

←→ to browse, or just keep scrolling

VIEW REPLAY FUND THE BUILD

03 · RACE REPLAY

THE SEASON
IN SIX CARDS.

FKDC 2025, Season 9, at Kari Motor Speedway. Arrow keys, or tap the sides.

FKDC 2025 · SEASON 9

Our first year racing electric.

Kari Motor Speedway, October 2025. New class, new kart, same team.

BACK THE NEXT RACE FUND THE BUILD ENTER GARAGE

04 · GARAGE

OPEN IT UP.
EVERY PART.

Pick anything on the kart and we will tell you what it is, what it does, and what it cost.

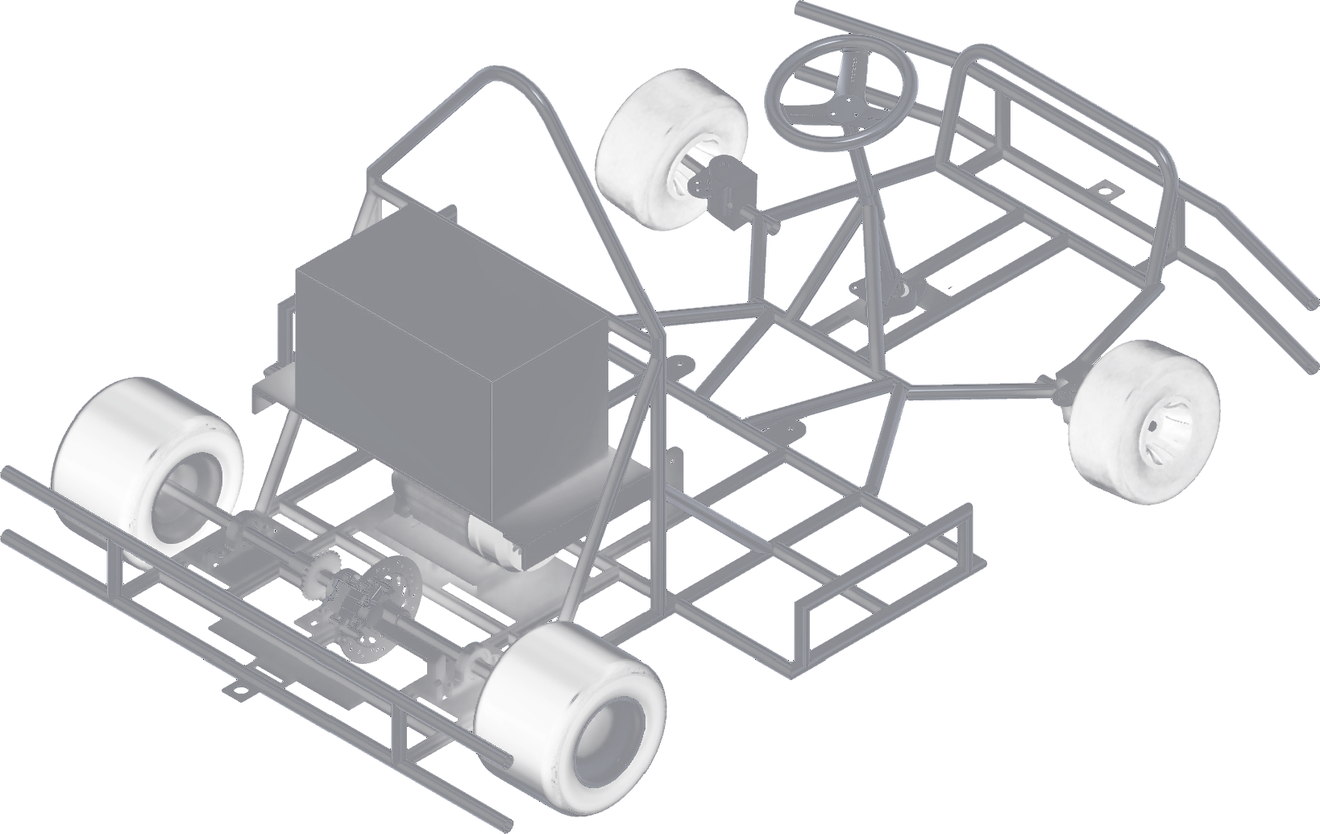

Isometric CAD render of the Apex Racing kart chassis, showing the frame, battery box, axles and steering.

Motor

6 kW PMSM

The thing that actually turns the wheels. Peak torque is nearly five times its rated figure, which is why the kart leaves the line the way it does.

Type: Permanent magnet synchronous
Rated power: 6 kW
Rated torque: 17.12 Nm
Peak torque: 79.22 Nm
Efficiency: Above 88% at full load
Cooling: Forced air, IP67

PARTS SHOPCONFIRM

FKDC 2025 build. The 2026 numbers are being put together now.

₹3,77,000

Motor

₹78,000

SPONSOR THIS

Battery

₹95,000

SPONSOR THIS

Chassis and fabrication

₹50,000

SPONSOR THIS

Tyres, steering and braking

₹40,000

SPONSOR THIS

Electronics and safety

₹35,000

SPONSOR THIS

Raw materials

₹16,000

SPONSOR THIS

Logistics

₹20,000

SPONSOR THIS

Competition entry

₹43,000

SPONSOR THIS

SEE WHERE FUNDING GOES FUND THE BUILD OPEN TELEMETRY

05 · TELEMETRY

THE KART
TALKS BACK.

We built our own telemetry. The kart talks to the pit from up to 10 km away with centimetre level GPS. Motor temperature, battery current and driver inputs, live.

DEMO DATA · NOT A LIVE FEED

GPS TRACE · RTK

MOTOR TEMP

42°C

BATTERY CURRENT

18A

G FORCE · IMU

HARDWARE

RADIO: ESP32 + SX1276
GPS: u-blox ZED-F9P RTK
TEMP: DS18B20
CURRENT: ACS712
IMU: MPU6050

SAFETY

PARTNER THE TECH FUND THE BUILD

06 · CREW SELECT

FOUR DEPARTMENTS.
ONE KART.

Everything on this kart was specified, sourced, cut, welded, wired or negotiated by a student in one of these four groups.

POWERTRAIN

Motor, controller and battery management, integrated into one drivetrain.

6 kW · 60 V · 120 Ah

CHASSIS

Frame design and development. Stronger, stiffer, lighter, inside the rules.

AISI 4130 · FEA VERIFIED

STEERING & BRAKES

Suspension, steering geometry and wheel assembly for stability and precise handling.

3 m RADIUS · 3 m STOP

MANAGEMENT

Sponsorships, sourcing, procurement, design, social, finance and logistics.

THE PART THAT PAYS FOR IT

Krtin Narayanan

Team Captain

CALL WHATSAPP

Paul J

Management Head

CALL WHATSAPP

Abilash Padmashankar

Corporate Partnerships

CALL WHATSAPP

We build karts that are fast because they are efficient. Every design call this season came from that.CONFIRM

Krtin Narayanan · Team Captain

Karting was the start. Supra is next. We are building a team that outlasts any one batch of students, and a name that means something in Tamil Nadu racing.CONFIRM

Paul J · Management Head

PARTNER WITH THE TEAM FUND THE BUILD

07 · PARTNER SETUP

PICK WHAT
YOU WANT TO BUILD.

We are college students. We cannot give you a stadium. We can put your name on a kart that races, on the people who build it, and in every report we submit. And we will show you where every rupee went.

STEP 01 · CHOOSE A LANE

Got tools, materials or space instead of cash?

Works for us. We value what you supply against the equivalent lane and you get the same treatment.

STEP 02 · WHERE YOUR NAME GOES

NOSESIDE PODREARTEAM SHIRTSREPORTS

STEP 03 · WHAT YOU GET

Your logo on the kart’s front nose, the most visible spot, separate from everyone else
The biggest logo on our team shirts
Your logo on every official report we submit, design report and business plan
Your logo in the corner of every video we post
Dedicated posts on our social channels
Priority at SSN college events, including flyers and stalls
Anything else you ask for that stays inside college rules

STEP 04 · START THE CONVERSATION

We do not publish numbers. Tell us what you want to build and we will tell you what it costs.

CALL ABILASH WHATSAPP US

EVERY PARTNER GETSCONFIRM

A marketing and R&D report at the end of the season
A memento and a certificate of appreciation from the college
A mention in the college magazine

Every partner gets a marketing and R&D report at the end of the season. You will see exactly where your support went.

SCAN TO CONTRIBUTE

NO MEETING NEEDED

FUND THE BUILD

Any amount, straight to the team, through Razorpay.

You do not need a company or a contract. Alumni, parents and anyone who likes what we are doing can put in whatever they want, right now, and it goes into this season’s kart.
